螺纹精度：6H 材质：A194M Gr.2H、2HM、4、6、 7、7M、8、8M 、660、718、625、600

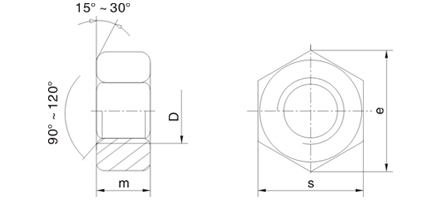

d | M8 | M10 | M12 | M16 | M20 | M24 | M30 | M36 | e | min | 14.38 | 17.77 | 20.03 | 26.75 | 32.95 | 39.55 | 50.85 | 60.79 | m | max | 7.5 | 9.3 | 12 | 16.4 | 20.3 | 23.9 | 28.6 | 34.7 | min | 7.14 | 8.94 | 11.57 | 15.7 | 19 | 22.6 | 27.3 | 33.1 | s | max | 13 | 16 | 18 | 24 | 30 | 36 | 46 | 55 | min | 12.73 | 15.73 | 17.73 | 23.67 | 29.16 | 35 | 45 | 53.8 |
|
|
|
|
|
|
|
|
|
