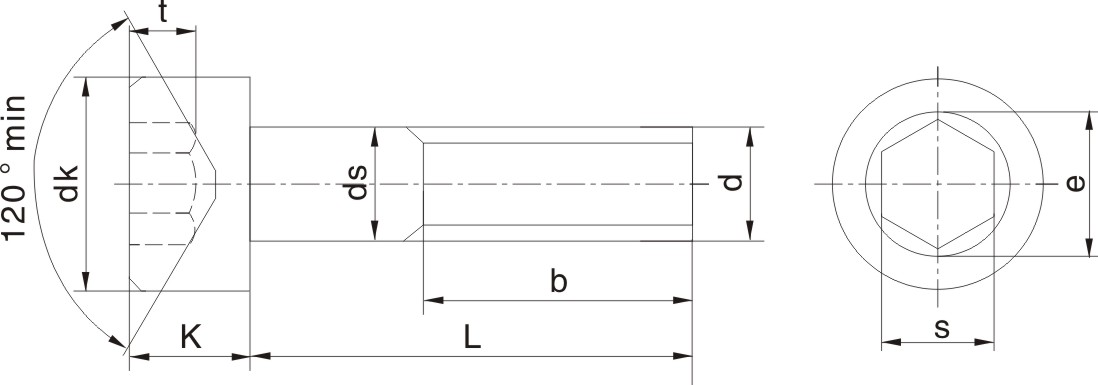

螺纹精度：812.9级 5g 6g 其他：6g L公差：js15 材质：B16、B8M、B8、B7M、L7M、B7、L7 英科镍尔 Inconei 600、625、718、X-750 d | M8 | M10 | M12 | M14 | M16 | M20 | M24 | b | 28 | 32 | 36 | 40 | 44 | 52 | 60 | dk | max | 光滑 | 13 | 16 | 18 | 21 | 24 | 30 | 36 | 滚花 | 13.27 | 16.27 | 18.27 | 21.33 | 24.33 | 30.33 | 36.30 | min | 12.73 | 15.73 | 17.73 | 20.37 | 23.67 | 29.67 | 35.61 | ds | mxa | 8 | 10 | 12 | 14 | 16 | 20 | 24 | min | 7.78 | 9.78 | 11.33 | 13.73 | 15.73 | 19.67 | 23.67 | k | max | 8 | 10 | 12 | 14 | 16 | 20 | 24 | min | 7.64 | 9.64 | 11.57 | 13.57 | 15.57 | 19.48 | 23.48 | s | max | 12.9 | 6.095 | 8.115 | 10.115 | 12.142 | 14.142 | 17.230 | 19.275 | 其他 | 6.14 | 8.175 | 10.175 | 12.212 | 14.212 | min | 6.02 | 8.025 | 10.025 | 12.032 | 14.032 | 17.05 | 19.065 | t | min | 4 | 5 | 6 | 7 | 8 | 10 | 12 | | | | | | | | | | | |
|
